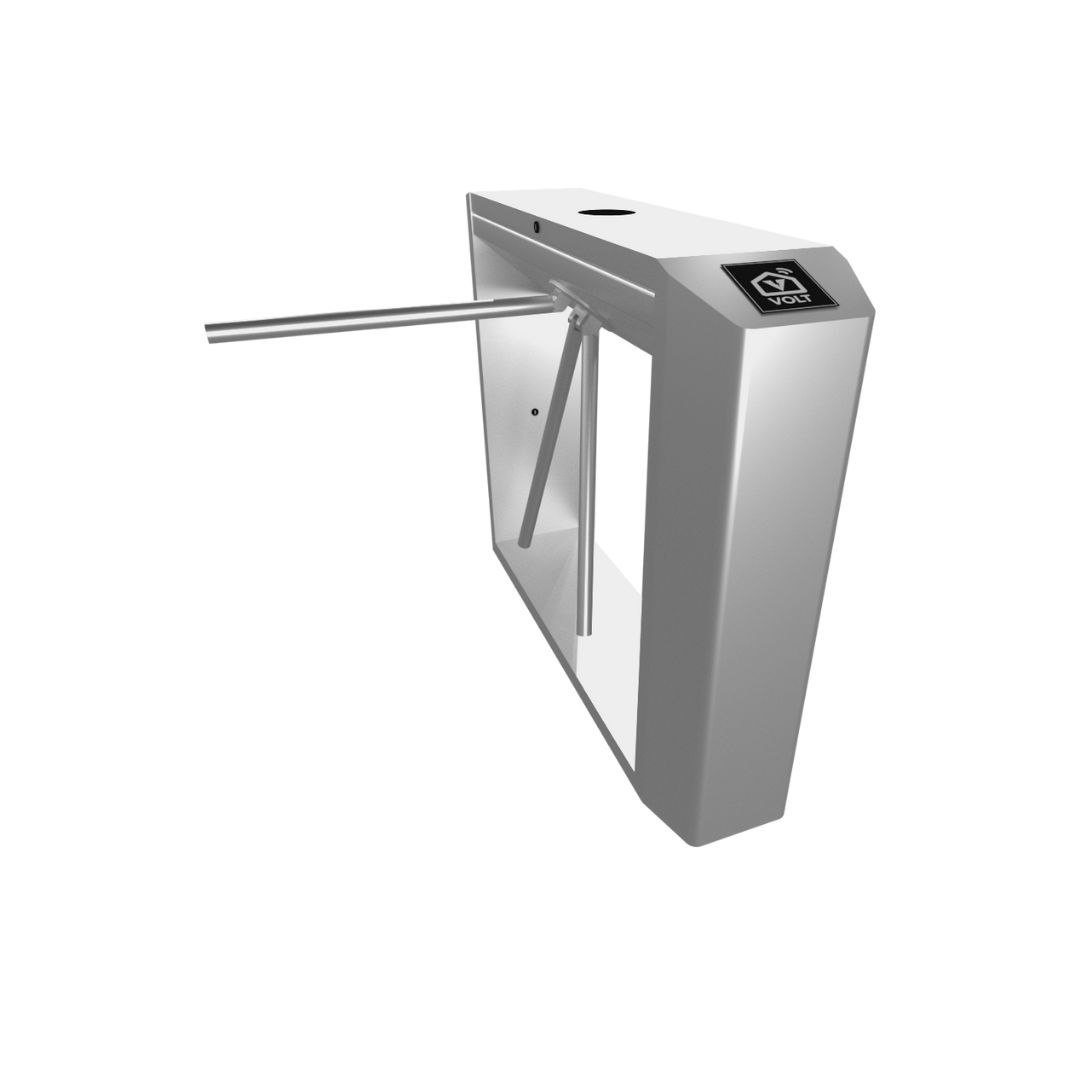

Model VST-02 – Tripod Turnstile The VST-02 is a stainless steel tripod turnstile designed for high-traffic areas, offering robust performance and smooth access control. It operates via dry contact signal or access control systems, unlocking one arm for a single authorized person. Specifications: • Dimensions: 980H x 1200L x 280W mm • Arm length: 500 mm • Arm angle: 120° • Throughput: 35 persons/min • Housing: 1.2–2.0 mm SUS 304 brushed stainless steel • Power supply: AC 220V/110V, 50/60Hz • Drive: Motor-driven • Signal input: Relay or DC12V level/pulse • Operating temp: -28°C to +60°C • Humidity: 5–85% • Durability: 3 million cycles • Gross weight: 54 kg • Optional: third-party system integration, passage counter, material customization
